Mini Crushing Washing Drying Plastic Recycling Machine Automatic

Ask Lasest Price
Brand Name :	SANWEI
Certification :	CE ISO
Supply Ability :	100 Set/Sets per Quarter
Price :	$3,200.00 - $8,600.00/sets

Add to Cart

Product Details
Company Profile

Mini Crushing Washing Drying Plastic Recycling Machine Automatic

Plastic crushing recycle washing line mini cheap plastic recycling machine

Material: Plastic Bag, PP Woven Bag, Plastic Film, Agricultural film, Plastic garbage etc.

Finished Product: clean and dry plastic flakes
Flake size: 30-40mm or customized
Working Process:
1. Material Conveying → 2. Crushing → 3. Friction Washing and Loading→ 4. Flotation Washing → 5. 2nd Flotation Washing → 6. Drying→ 7. Product Collecting

S / N	Item Name	Function / Remark
1	Conveyor	Feeding material
2	Crusher	Crushing the material into small size
3	Friction Washing loader Machine	Washing out the sand, soil and loading the material
4	Floating Washing Tank	Floating washing separate the sand,soil and other dirties
5	2nd Floating Washing Tank (self-selection)	Floating washing separate the sand,soil and other dirties
6	Horizontal dewatering machine	Drying

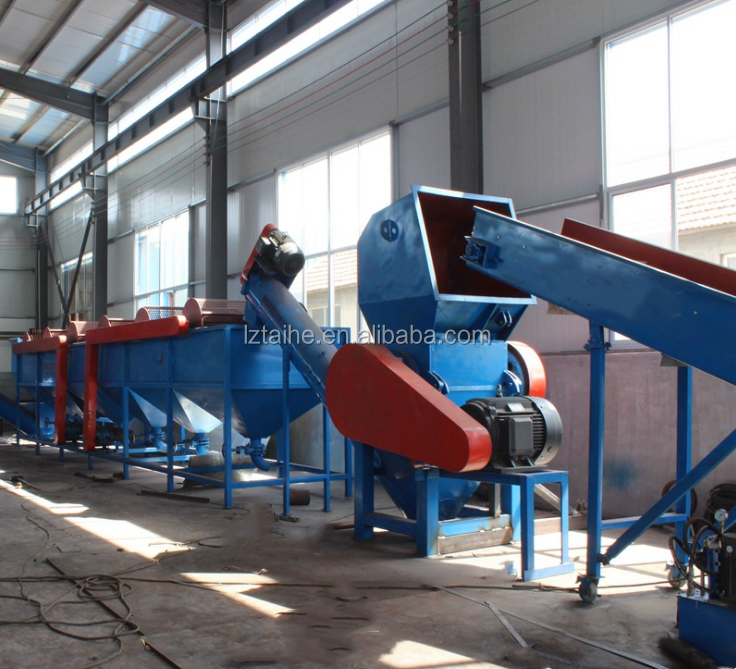

Mini Crushing Washing Drying Plastic Recycling Machine Automatic

Plastic crushing and friction washing machine with conveyor

Floating washing tank

Details Images

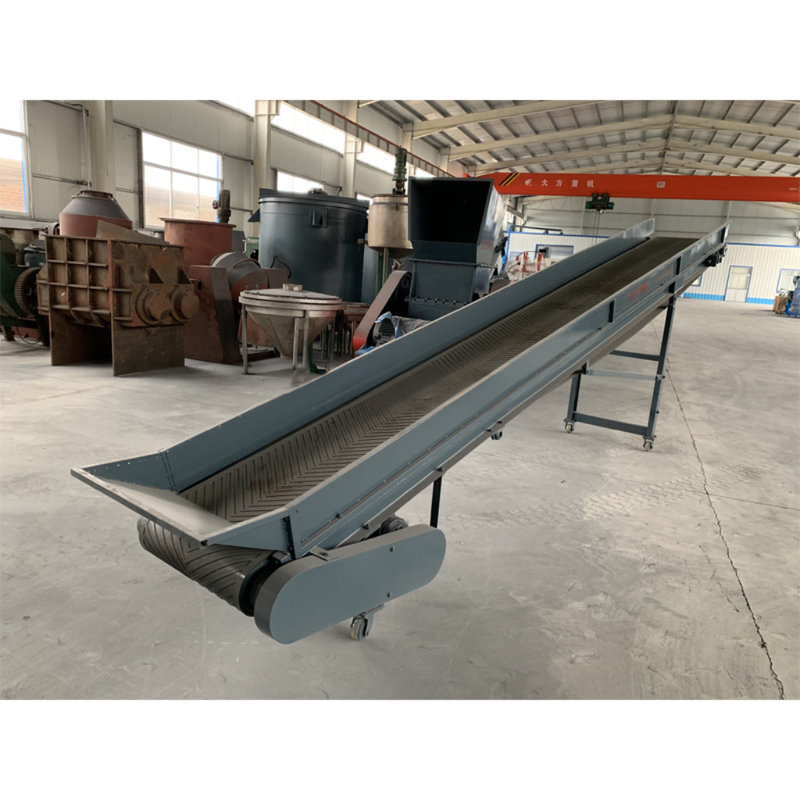

Conveyor

Belt width: 0.5m
Delivery length: 5m
Motor power: 1.5kw
Can be customized.

Plastic crushing and friction washing machine

Model: SW-600
Motor power: 30kw
Rotary blade: 6PCS
Stationary blade: 4PCS
Blade size: L: 300mm, W: 100mm,
TH: 20mm
Diameter of rotating: 540mm
Friction washing machine:
Length: 2.5m
Diameter: 377mm
Motor power: 15kw

Floating washing tank

Dimension: 6 m * 1.5 m * 1.7 m * 2 with automatic slagging function
Material: carbon steel
Plate thickness: 6mm
Spiral discharge: 220x5000mm
Spiral slag removal: 220x2500mm
Heavy material support, reserved drain
Heavy duty feeder: three per pool
Cycloidal needle motor: BWD1.5KW2, 2.2kw 2, 3kw2

Horizontal dewatering machine

Cylinder diameter: 700mm
Effective length: 2500mm
Motor power: 22kw
Speed: about 1200rpm
Screen: aperture 5mm
Dehydration rate: not less than 80%
Production capacity: 800-1000kg/h
