LAIZHOU TAIHE CHEMICAL MACHINE CO.,LTD
2 Years
| Ask Lasest Price | |
| Brand Name : | SANWEI |
| Supply Ability : | 100 Set/Sets per Quarter |
| Price : | $3,250.00/sets 1-4 sets |

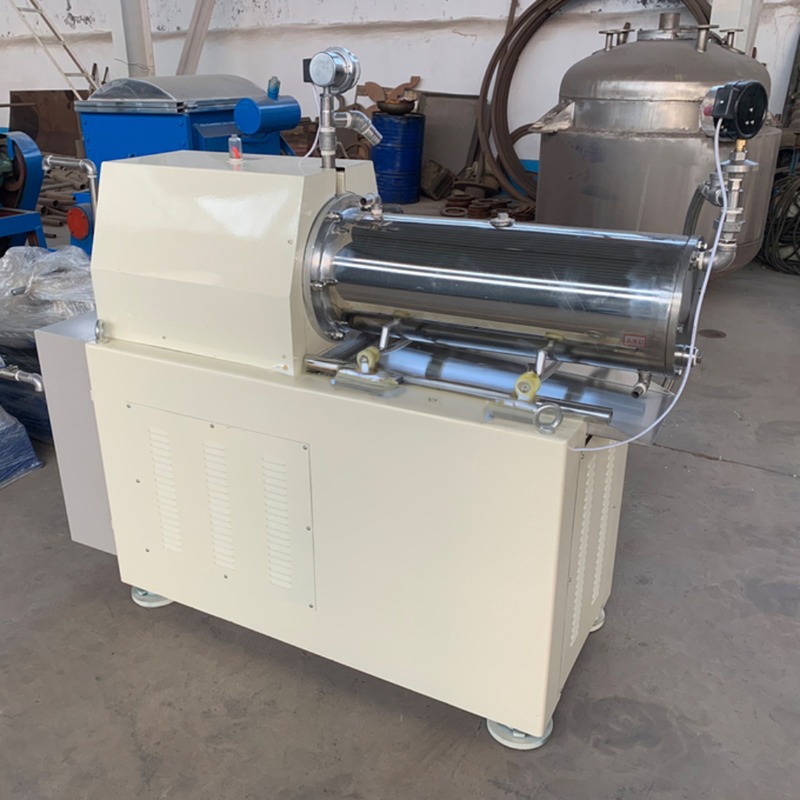

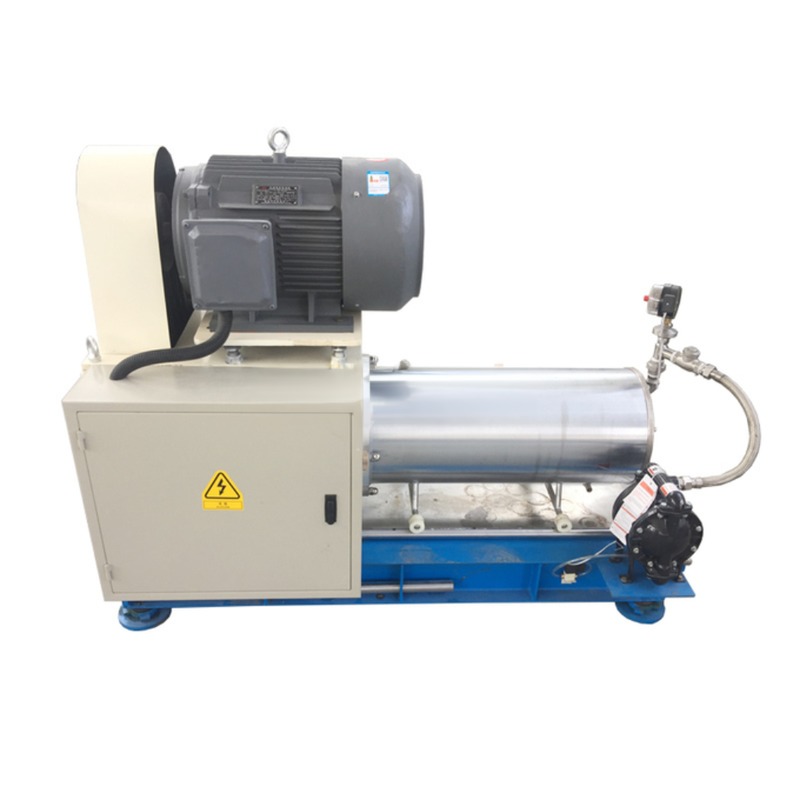

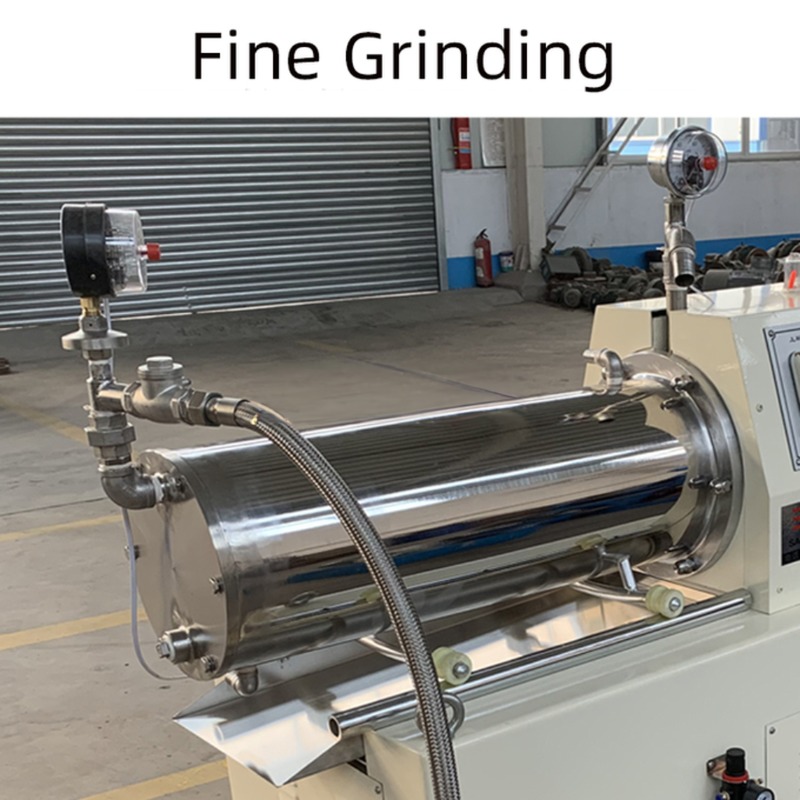

Horizontal sand mill usually used for paint, dye, ink, magnetic
powder, ferrite, film, paper, cosmetics and other non-metallic
mineral industry of high efficiency grinding machinery.
Advantages:
1. High hardness and wear-resistance inner tube

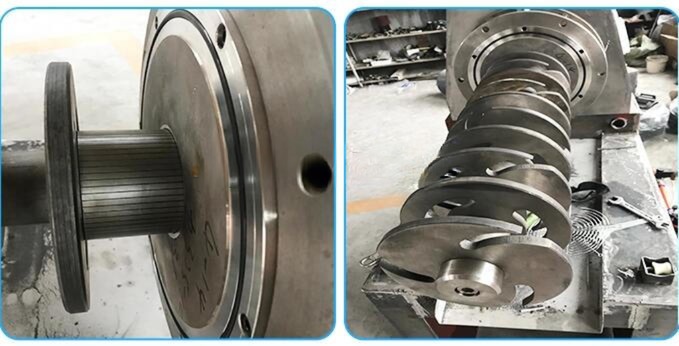

2. High wear-resistance grinding discs of different materials.
3. Pulley mechanism easy assembly and disassembly
4. Popularity for medium and low viscosity materials.
5. Fineness: about 5~10um
Volume | motor power | grinding fineness | capacity | weight |
10L | 11kw | 10-20um | 100---300kg/h | 400kg |
20L | 18.5kw | 10-20um | 200---400kg/h | 600kg |
30L | 22kw | 10-20um | 300---500kg/h | 800kg |
50L | 30kw | 10-20um | 500-700kg/h | 1000kg |
100L | 45kw | 10-20um | 800---1200kg/h | 2000kg |
|
|
